Streaming To Twitch Using Custom RTMP

Switcher's Twitch integration makes it quick and easy to stream to your Twitch Channel with the Switcher: Live Streaming App for iPad, iPhone, and Mac! However, there are some instances when using the integration is not a recommended option, including:

  • If you are having trouble linking your Twitch account to Switcher Studio
  • If there is a known issue with the Switcher Studio + Twitch integration
  • Personal preference

Using Custom RTMP allows you to stream to Twitch with Switcher Studio without using the integration.

Note: For information about what Custom RTMP is and why it's used, check out the Help Center article Streaming to Platforms without a Direct Integration.


Table Of Contents

Finding Your Twitch Stream Key

  • Log into your Twitch account at twitch.tv
  • Click on your profile photo at the top-right corner
    • From the dropdown menu that appears, choose Creator Dashboard
  • Select Settings from the menu on the left-hand side
    • Choose Stream
  • Your Primary Stream Key shows at the top of the screen.
    • Click the purple COPY option

Creating Your Twitch RTMP Channel In The Switcher Dashboard

  • Log into your Switcher Dashboard
  • From the menu on the left-hand side, choose Platforms
  • Scroll down to Custom RTMP
    • Click the orange Set Up RTMP button
  • For your Channel Nickname, title it something relating to Twitch (i.e. My Twitch Channel)
    • Don't worry. Your viewers can't see this 🙂
  • For the Stream Key, right-click inside the box and choose Paste from the pop-up
    • The Stream Key that you copied from Twitch will appear
  • For the Server URL, use rtmp://live.twitch.tv/app/
    • This is the same for everyone
  • Run a Speed Test to select the best settings for your current networking conditions.
  • Click the orange SAVE button at the bottom of the window.

Going Live To Twitch Via RTMP Within The Switcher App

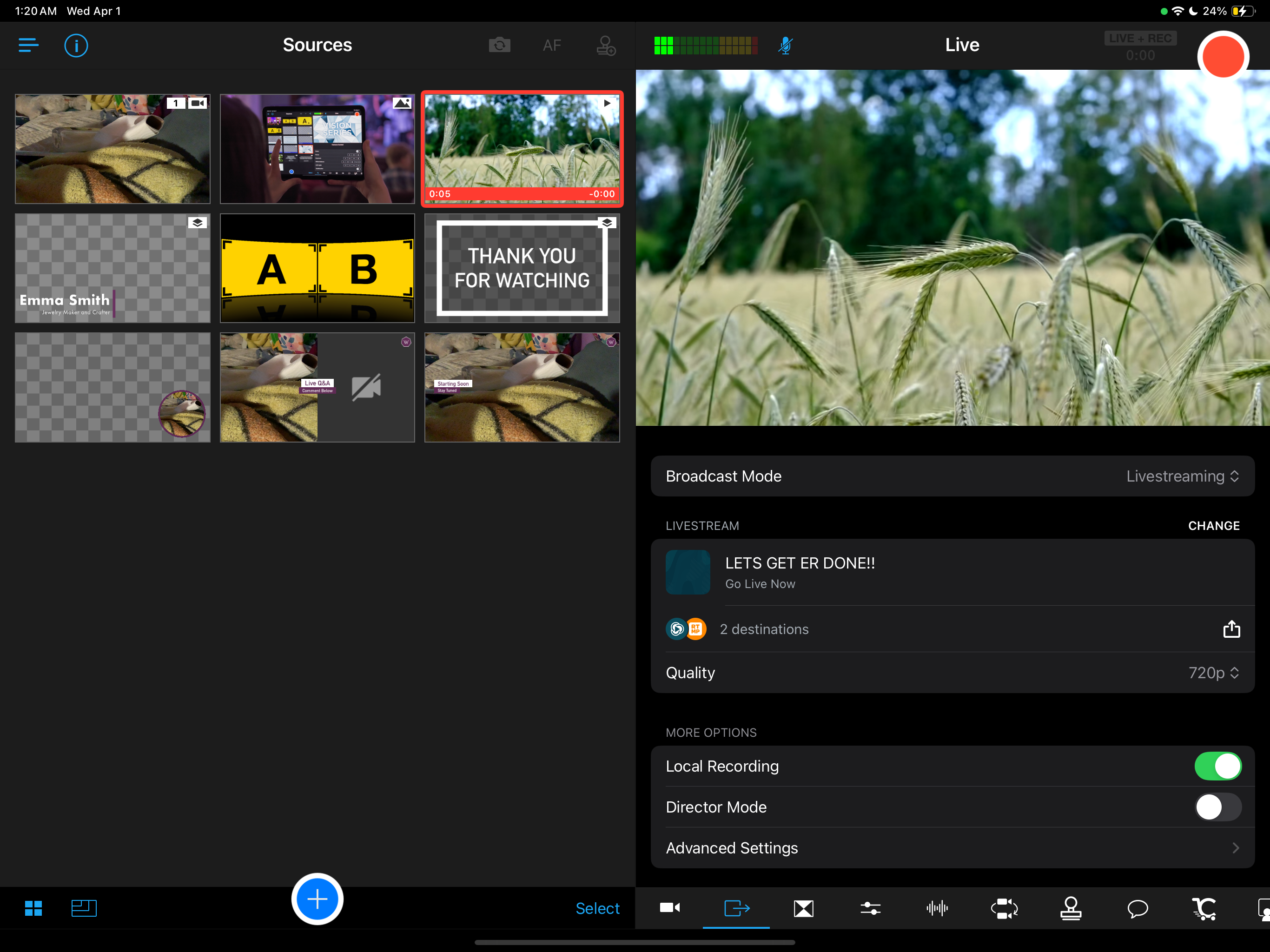

  • When you're ready to stream, open the Switcher app on your main switching device, and choose "Go Live".
  • Tap on the orange "Create Livestream" button.

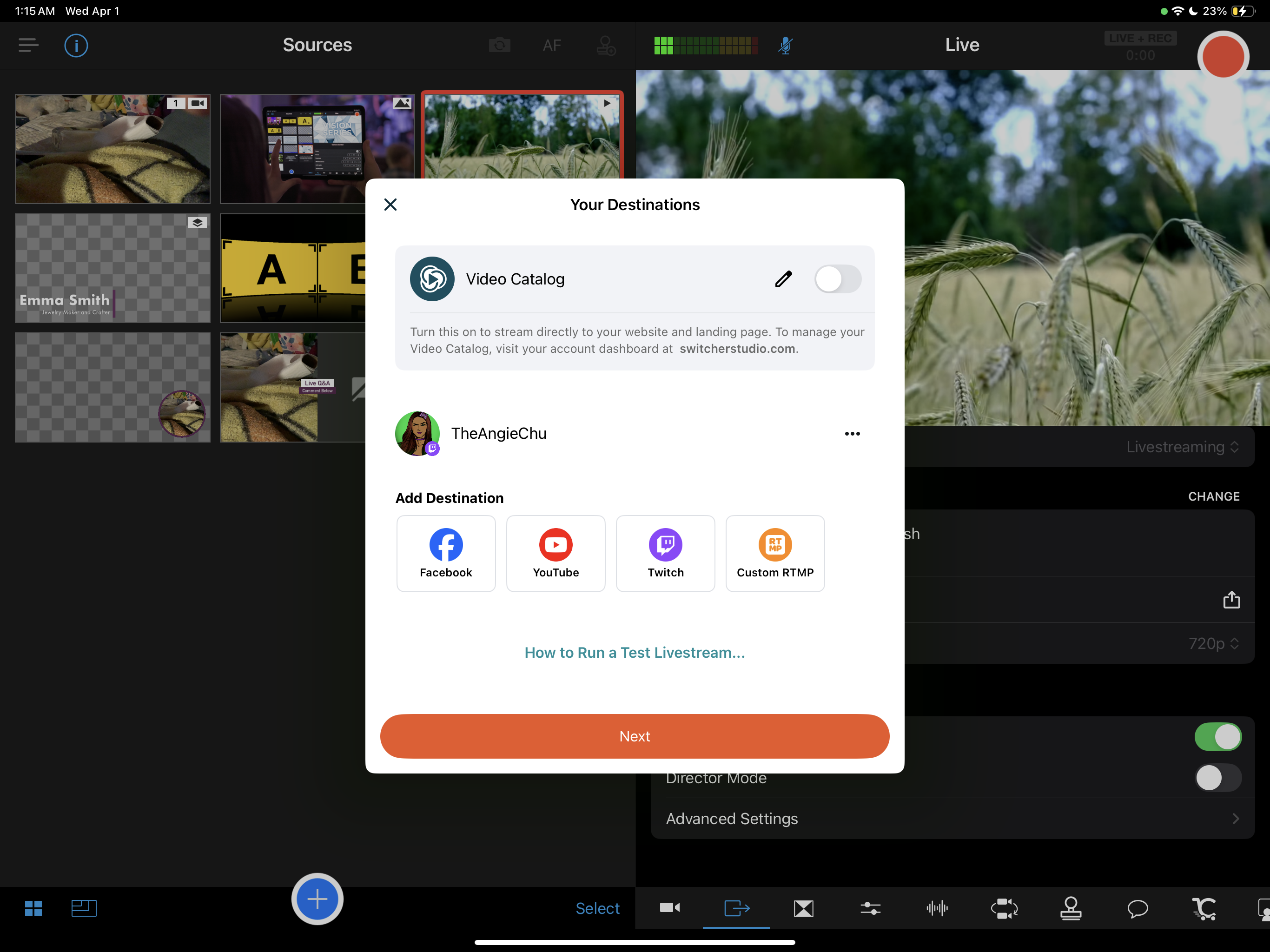

  • Tap on the icon for Custom RTMP.

All of the Custom RTMP channels that you've created will appear based on their nickname. If you do not see your desired channel, swipe down on the list to refresh and sync the app with the Switcher Dashboard.

  • Tap on the correct channel nickname.
  • A green bubble will appear to the right of the name, confirming your selection.

If you would like to edit the stream details, tap the three little dots on the right.

  • Tap on any of the fields to edit them.

    At a minimum, we highly recommend running a new Speed Test while connected to the network that you'll be using for your stream!

    • Tap Speed Test.
    • Tap Save to allow the speed test results to select the correct streaming resolution for your current networking settings.

  • You'll be taken back to the Destinations menu. Add your additional destinations if you plan to Multistream.
  • Tap the orange "Next" button when you are done.

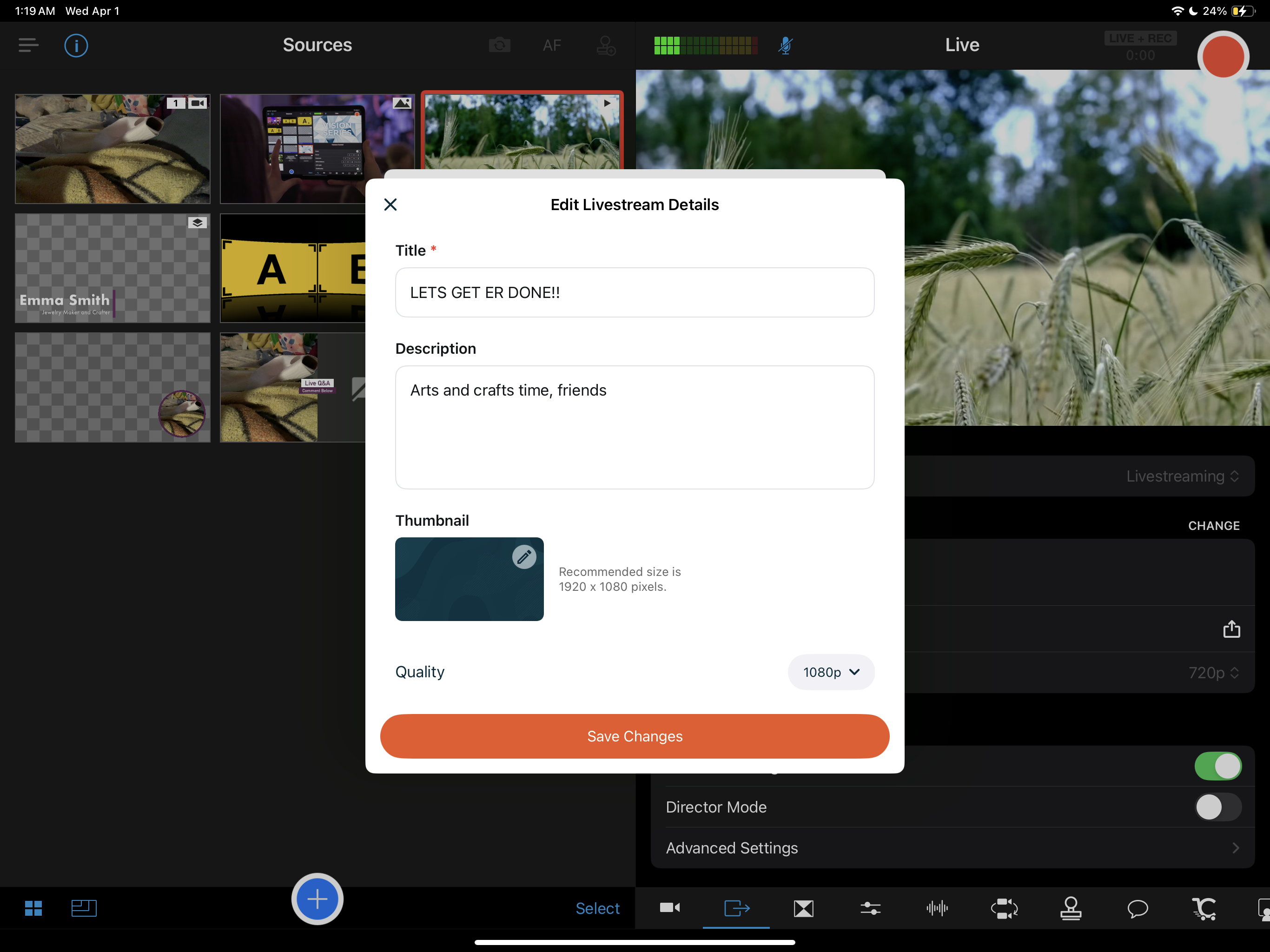

  • After you've tapped on the orange "Next" button, you'll be taken to the Livestream Details page. Start off by adding a Title and a Description for your stream.
  • If you have a custom image you intend to set as the stream's thumbnail, tap on the pencil icon in the Thumbnail image to select any image from your Photos app.
  • Tap on the dropdown menu in the Schedule line to choose whether to Go Live Now, or to Schedule For Later.
  • Tap the stream Quality dropdown menu to run a speed test and select your desired video resolution.
  • When you're done, tap on the orange "Create Livestream" button at the bottom.

  • You'll now see the title of your Twitch stream appear in the Outputs tab with the chosen RTMP destination.
  • When you're ready to go live, tap the big red button in the top-right corner. Happy streaming!
